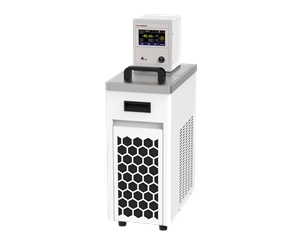

CC系列恒温循环器集成了加热和制冷功能,水浴槽体采用全不锈钢材质,外面用隔热棉隔热保温,为样品直接置于水浴槽中进行恒温试验提供了经济的方案,水槽容积有5L和8L两种选择,型号中不带"+"可选配外部循环适配器和外置温度传感器PT100可进行外部控温和循环应用,型号中带"+"标配外部循环适配器和外置温度传感器PT100,泵的功能更加强大,压力可达到0.7bar,吸力可达0.4bar。适用于样品的温度控制、材料测试、质量控制、分析等。使用环保型天然制冷。带有液位保护和过温保护功能,符合安全等级III 级/FL可使用可燃性液体,符合DIN 12876标准。
型号 | 温度范围 [ºC] |
温度稳定性 [ºC] |
加热功率 [W] |
泵流量 [L/Min] |
泵压力 [bar] |
泵吸力 [bar] |
浴槽体积 [L] |
浴槽开口尺寸 WxDxH[mm] |
外形尺寸 WxDxH[mm] |
产品资料下载 |
CC-2005E | -20...100 | ±0.05 | 2000 | 12 | 0.2 | 0.1 | 5.0 | 166X38X150 | 230X400X615 | CC-2005E |
CC-4005E | -40...100 | ±0.05 | 2000 | 22 | 0.3 | 0.2 | 5.0 | 166X38X150 | 230X400X720 | |
CC-8005E | -80...100 | ±0.05 | 2000 | 22 | 0.3 | 0.2 | 5.0 | 166X38X150 | 350×570×778 | |
CC-4008E | -40...100 | ±0.05 | 2000 | 22 | 0.3 | 0.2 | 8.0 | 166X140X150 | 230X400X720 | |
CC-8008E | -80...100 | ±0.05 | 2000 | 22 | 0.3 | 0.2 | 8.0 | 166X140X150 | 350×570×778 | |
CC-2013E | -20...100 | ±0.05 | 2000 | 12 | 0.2 | 0.1 | 13.0 | 290×145×150 | 350×400×660 | |
CC-2017E | -20...100 | ±0.05 | 2000 | 22 | 0.3 | 0.2 | 17.0 | 290×145×200 | 350×400×660 | |
CC-2020E | -20...100 | ±0.05 | 2000 | 22 | 0.3 | 0.2 | 20.0 | 295×297×150 | 350X570X778 | |
CC-3020E | -30...100 | ±0.05 | 2000 | 22 | 0.3 | 0.2 | 20.0 | 295×297×150 | 350X570X778 | |
CC-2027E | -20...100 | ±0.05 | 2000 | 22 | 0.3 | 0.2 | 27.0 | 295×297×200 | 350X570X778 | |
CC-3027E | -30...100 | ±0.05 | 2000 | 22 | 0.3 | 0.2 | 27.0 | 295×297×200 | 350X570X778 | |
CC-2005SM | -20...150 | ±0.03 | 2000 | 22 | 0.3 | 0.2 | 5.0 | 166×38×150 | 230X400X615 | |
CC-4005SM | -40...150 | ±0.03 | 2000 | 22 | 0.3 | 0.2 | 5.0 | 166×38×150 | 230X400X720 | |
CC-2008SM | -20...150 | ±0.03 | 2000 | 22 | 0.3 | 0.2 | 8.0 | 166X140X150 | 230X400X615 | |
CC-4008SM | -40...150 | ±0.03 | 2000 | 22 | 0.3 | 0.2 | 8.0 | 166X140X150 | 230X400X720 | |
CC-2017SM | -20...150 | ±0.03 | 2000 | 22 | 0.3 | 0.2 | 17.0 | 290×145×200 | 350×400×660 | |
CC-2020SM | -20...150 | ±0.03 | 2000 | 22 | 0.3 | 0.2 | 20.0 | 295×297×150 | 350×570×778 | |
CC-3020SM | -30...150 | ±0.03 | 2000 | 22 | 0.3 | 0.2 | 20.0 | 295×297×150 | 350×570×778 | |
CC-2027SM | -20...150 | ±0.03 | 2000 | 22 | 0.3 | 0.2 | 27.0 | 295×297×200 | 350×570×778 | |
CC-3027SM | -30...150 | ±0.03 | 2000 | 22 | 0.3 | 0.2 | 27.0 | 295×297×200 | 350×570×778 | |
CC-2005SH | -20...200 | ±0.03 | 2000 | 22 | 0.3 | 0.2 | 5.0 | 166×38×150 | 230X400X615 | |
CC-4005SH | -40...200 | ±0.03 | 2000 | 22 | 0.3 | 0.2 | 5.0 | 166×38×150 | 230X400X720 | |
CC-2008SH | -20...200 | ±0.03 | 2000 | 22 | 0.3 | 0.2 | 8.0 | 166X140X150 | 230X400X615 | |
CC-4008SH | -40...200 | ±0.03 | 2000 | 22 | 0.3 | 0.2 | 8.0 | 166X140X150 | 230X400X720 | |
CC-2013SH | -20...200 | ±0.03 | 2000 | 22 | 0.3 | 0.2 | 13.0 | 290×145×150 | 350×400×660 | |
CC-2017SH | -20...200 | ±0.03 | 2000 | 22 | 0.3 | 0.2 | 17.0 | 290×145×200 | 350×400×660 | |
CC-2020SH | -20...200 | ±0.03 | 2000 | 22 | 0.3 | 0.2 | 20.0 | 295×297×150 | 350×570×778 | |
CC-3020SH | -30...200 | ±0.03 | 2000 | 22 | 0.3 | 0.2 | 20.0 | 295×297×150 | 350×570×778 | |
CC-2027SH | -20...200 | ±0.03 | 2000 | 22 | 0.3 | 0.2 | 27.0 | 295×297×200 | 350×570×778 | |
CC-3027SH | -30...200 | ±0.03 | 2000 | 22 | 0.3 | 0.2 | 27.0 | 295×297×200 | 350×570×778 | |
CC-2005AH | -20...200 | ±0.02 | 2000 | 0···33.3 | 0...0.7 | 0...0.4 | 5.0 | 166×38×150 | 230×400×615 | |
CC-4005AH | -40...200 | ±0.02 | 2000 | 0···33.3 | 0...0.7 | 0...0.4 | 5.0 | 166×38×150 | 230×400×720 | |
CC-2008AH | -20...200 | ±0.02 | 2000 | 0···33.3 | 0...0.7 | 0...0.4 | 8.0 | 166X140X150 | 230×400×615 | |
CC-4008AH | -40...200 | ±0.02 | 2000 | 0···33.3 | 0...0.7 | 0...0.4 | 8.0 | 166X140X150 | 230×400×720 | |
CC-3013AH | -30...200 | ±0.02 | 2000 | 0···33.3 | 0...0.7 | 0...0.4 | 13.0 | 290×145×150 | 350×400×660 | |
CC-3020AH | -30...200 | ±0.02 | 2000 | 0···33.3 | 0...0.7 | 0...0.4 | 20.0 | 295×297×150 | 350×570×778 | |
CC-1008E | -10...100 | ±0.05 | 2000 | 12 | 0.2 | - | 8.0 | 166×140×150 | 230×400×615 | |
CC-2008E | -20...100 | ±0.05 | 2000 | 22 | 0.3 | 0.2 | 8.0 | 166×140×150 | 230×400×615 | |
CC-4013E | -40...100 | ±0.05 | 2000 | 22 | 0.3 | 0.2 | 13.0 | 295×130×150 | 350×450×720 | |
CC-4017E | -40...100 | ±0.05 | 2000 | - | - | - | 17.0 | 295×130×200 | 350×570×778 | |
CC-4017SM | -40...150 | ±0.03 | 2000 | 22 | 0.3 | - | 17.0 | 295×130×200 | 350×570×778 | |
CC-4013SH | -40...200 | ±0.03 | 2000 | 22 | 0.3 | - | 13.0 | 295×130×150 | 350×450×720 | |
CC-4017SH | -40...200 | ±0.03 | 2000 | 22 | 0.3 | - | 17.0 | 295×130×200 | 350×570×778 | |
CC-2008SHW | -40...150 | ±0.03 | 2000 | 22 | 0.3 | - | 17.0 | 295×130×200 | 350×570×778 | |
CC-2045SHW | -20...200 | ±0.03 | 3000 | 22 | 0.3 | 0.2 | 45.0 | 300×300×320 | 580×510×555 | |
CCmini-406 | -40...200 | ±0.02 | 2000 | 0...33.3 | 0...0.7 | 0...0.4 | 6.0 | - | - | |
CC-4013AH | -40...200 | ±0.02 | 2000 | 0...33.3 | 0...0.7 | 0...0.4 | 13.0 | 295×130×150 | 350×400×660 | |
CC-4017AH | -40...200 | ±0.02 | 2000 | 0...33.3 | 0...0.7 | 0...0.4 | 17.0 | 295×130×200 | 350×570×778 | |
CC-3027AH | -30...200 | ±0.02 | 2000 | 0...33.3 | 0.000.7 | 0...0.4 | 20.0 | 295×295×150 | 350×570×778 | |
CC-2013SM | -20...150 | ±0.03 | 2000 | 22 | 0.3 | - | 13.0 | 350×400×660 | 295×130×150 | |
CC-4013SM | -40...150 | ±0.03 | 2000 | 22 | 0.3 | - | 13.0 | 350×450×720 | 295×130×150 | |
CC-5008AH | -50...200 | ±0.02 | 3000 | 0...33.3 | 0...0.7 | 0...0.4 | 8.0 | 166×140×150 | 410×550×778 |
